ORCHYD-IA 6G

Offering main image

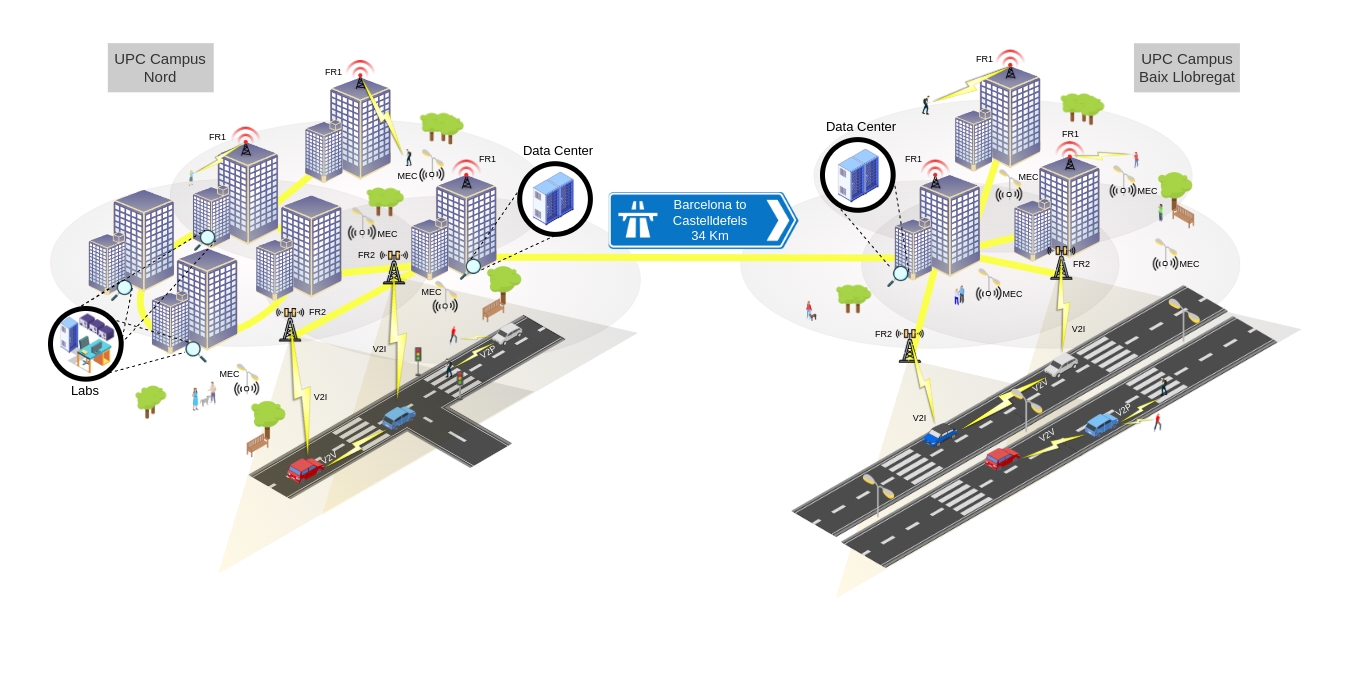

The ORCHYD-IA 6G infrastructure developed through the 6G OpenLab and ELEGANT projects, led by UPC, aims to revolutionize connectivity through the deployment of an advanced 5G infrastructure towards 6G. This setup forms a comprehensive testbed for designing, validating, and monitoring components, services, applications, AI tools, and 5G/6G technology protocols. The network is end-to-end and multi-technology, including 5G/6G radio access, FR1 and millimeter-wave FR2 bands, Wi-Fi6, WDM, TSN, MEC, and geo-redundant 5G cores. It is equipped with data centers featuring AI/ML capabilities, measurement equipment, and simulators/emulators, and connects UPC’s Castelldefels and Nord campus via a WDM optical network spanning over 25 km.
CONTACT
Keywords 5G 5G and 6G networks 6G TSN network computing deep learning deep reinforcement learning algorithms for access network management industrial processes control in real time with TSN-5G networks wavelength
Home partner institution (UPC) Universitat Politècnica de Catalunya
Remote access available Yes
Open to external users Yes
Equipment
  • Signal generators and FR2 and FR1 5G NR R15 converters with 2 channels at 6 GHz and 20 GHz
  • Network and signal analyzers up to 26 GHz
  • Oscilloscope up to 33 GHz with 4 channels
  • Data centers with Kubernetes clusters, including multiple high-performance servers and nodes with 64 CPUs, 256 GB RAM, 2 TB storage, and NVIDIA A100 GPUs with 80 GB and 7 x 10 GB MIGs
  • Open SDN/NFV environment with Opendaylight, ONOS, OSM Mano controllers, and slicing
  • Time-Sensitive Networking (TSN) nodes, SoC-e MTSN switches, CNC, CUC, controllers and 5G gateways synchronized via GPS and PTP
  • 5G nodes, Amarisoft Callbox base stations for FR1+FR2, USRP N321, programmable USIM terminals, and emulated 5G core network
  • 5G emulators and simulators (Amarisoft, OpenAir Interface, srsRAN)
  • MEC emulators. High-capacity network with 100 Gbps switches and WDM (soon to include 400 Gbps and WSS nodes)
  • Edge computing elements based on NVIDIA ORIN with sub-6 5G, Wi-Fi6, and positioning capabilities
  • Remote Radio Heads (RRH) and Baseband Units (BBU) with 5G and 5G+ core, interconnected via single-mode fiber WDM
  • Sensor network
